DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing

Name: DPI Data Aggregation Passive Network Tap With RealTime Traffic Trend Monitoring Data Slicing
Brand: NetTAP®
Price: 1 USD

Brand Name : NetTAP®

Model Number : NT-VPP-4860G

Place of Origin : China

MOQ : 1 SET

Price : Can Discuss

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 1-3 Working Days

Packaging Details : Outer Carton plus Inner Foam

Certification : CCC, CE, RoHS

Traffic Trend Monitoring : Monitoring and statistics on port-level and policy-level data traffic

Policy-based Data Slicing : 64-1518 bytes optional

User Authentication : Based on user’s password authentication

APP Layer Protocol : Support FTP/HTTP/POP/SMTP/DNS/NTP/ BitTorrent/SYSLOG/MYSQL/MSSQL Identified

Applications : Data Center Of Telecom, Broadcasting, Government, Finance, Energy, Power, Petroleum, Hospital, School, Enterprise And Other Industries

Related Solutions : Network Visibility, Network Monitor, Network Security, Network Analytics, Data Center, Traffic Management, Traffic Optimize

Contact Now

DPI Data Aggregation Passive TAP with Real-time Traffic Trend Monitoring Data Slicing for Network Traffic Aggregate

1.Overviews

NT-VPP-4860G traffic visualization processor can copy the original input traffic and the preprocessed traffic to the n-way signal according to the 1-way signal or the 10GE wire speed forwarding of the n-way signal to the m-way signal after the n-way signal is gathered, which perfectly solves the requirement of deploying more than two multi-port monitoring bypass devices in the network at the same time.

2.Intelligent Traffic Processing Abilities

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing Data Aggregation

Packet replicated from 1 port to multiple N ports, or multiple N ports aggregated, then replicated to multiple M ports

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing Real-time Traffic Trend Monitoring

Supported real-time monitoring and statistics on port-level and policy-level data traffic, to show the RX / TX rate, receive / send bytes, No, RX / TX the number of errors, the maximum income / hair rate and other key indicators.

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing Data Slicing

Supported policy-based slicing (64-1518 bytes optional) of the raw data, and the traffic output policy can be implemented based on user configuration

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing NetTAP® Visibility Platform

Supported NetTAP® Matrix-SDN Visual Control Platform Access

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing 1+1 Redundant Power System(RPS)

Supported 1+1 Dual Redundant Power System

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing NT-VPP-4860G Network TAP NPB.pdf

3.Typical Application Structures

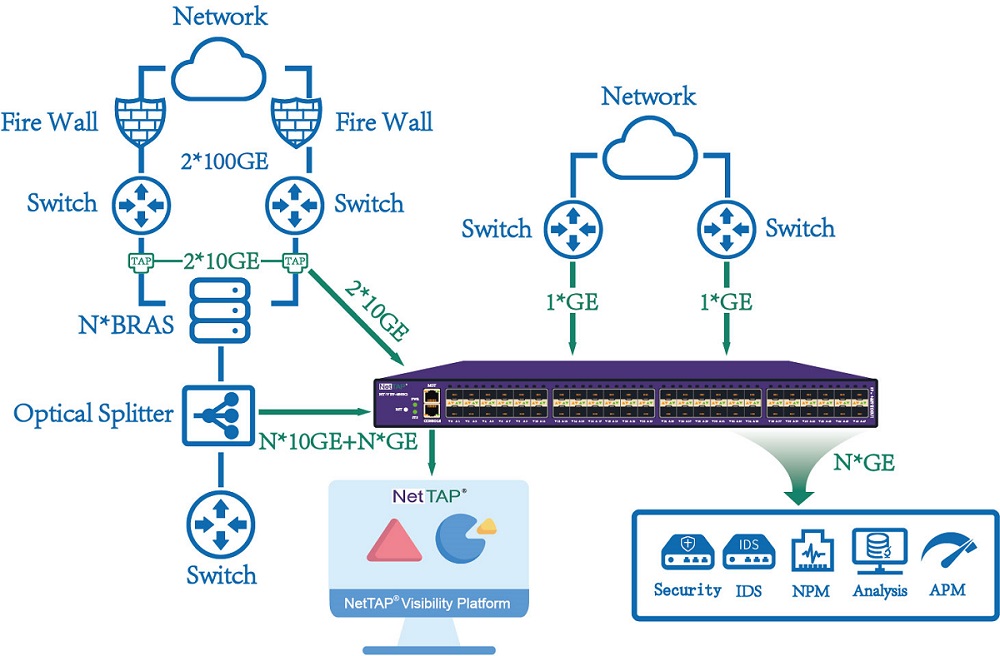

Centralized Collection Application(as following)

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing

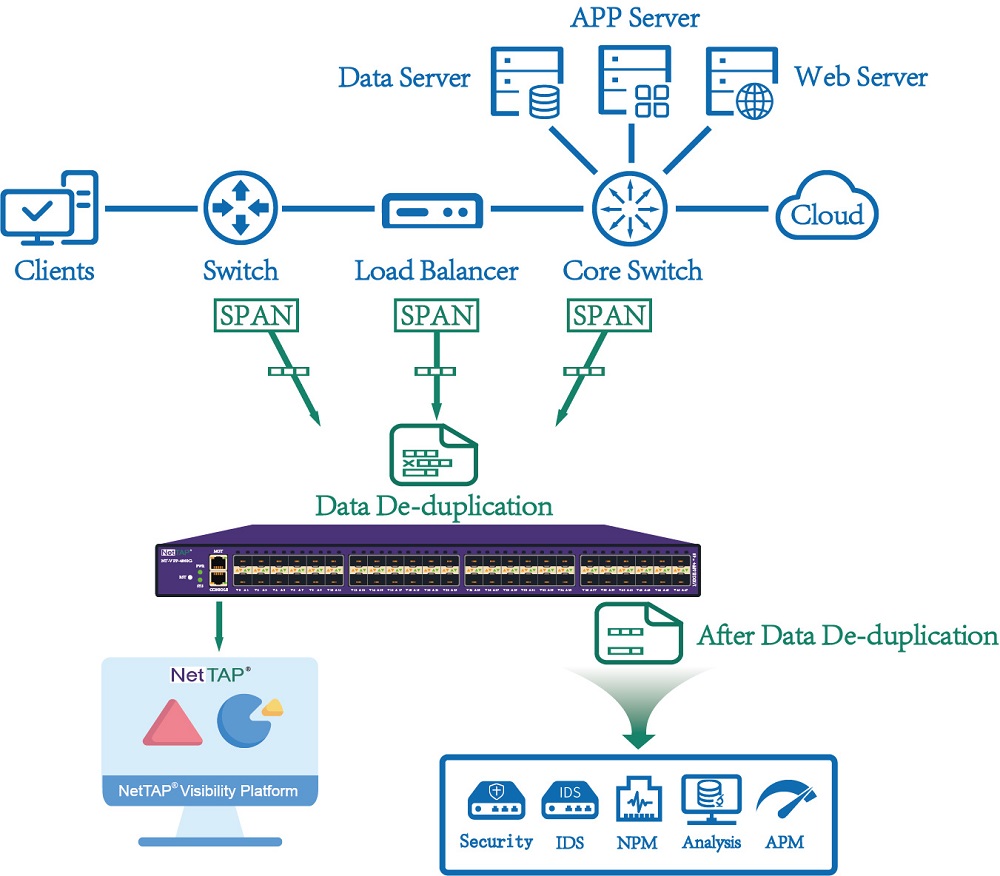

Data De-duplication Application(as following)

DPI Data Aggregation Passive Network Tap With Real-Time Traffic Trend Monitoring Data Slicing

4.Specifications

Data Aggregation Network TAP with Real-time Traffic Trend Monitoring Data Slicing for Network Traffic Aggregate
Network Interface		10GE	48*SFP+ slots, support 10GE/GE； Support Single/Multiple mode fiber
Network Interface		Out-of-Band MGT Interface	1*10/100/1000M electrical port；
Deployment Mode		Optical	support
Deployment Mode		Mirror Span	support
	Intelligent Traffic Processing	Time-stamping	support
		Tag remove	Support VxLAN,VLAN,MPLS header stripping
		Data de-duplication	Support interface/policy
		Packet slicing	Support policy
		Data desensitization	Support policy
		Tunneling reorganization	support
		Application layer protocol identification	Support FTP/HTTP/POP/SMTP/DNS/NTP/ BitTorrent/SYSLOG/MYSQL/MSSQL and so on
		Video traffic recognition	support
		Processing ability	40Gbps
	Management	CONSOLE MGT	support
		IP/WEB MGT	support
		SNMP MGT	support
		TELNET/SSH MGT	support
		SYSLOG protocol	support
		User authentication	Based on user’s password authentication
Electric(1+1 Redundant Power System-RPS)		Rate power supply voltage	AC110~240V/DC-48V(optional)
		Rate power supply frequency	AC-50HZ
		Rate input current	AC-3A / DC-10A
		Rate power	Max 250W
Environment		Working temperature	0－50℃
		Storage temperature	-20-70℃
		Working humidity	10%-95%,no condensation
User Configuration		Console configuration	RS232 interface, 115200,8,N,1
User Configuration		Password authentication	support
Height of Chassis		(U)	1U 445mm44mm402mm
